Cavi interni ed esterni in rame Infissi in ottone Collegati con tubi per l'acqua Olio aria
ContPerson : Ina Chen
Numero di telefono : 0086-15168536055
WhatsApp : +8615168536055
| Luogo di origine: | Cina | Marca: | NBSANMINSE |
|---|---|---|---|
| Numero di modello: | 503-DN6 503-DN10 503-DN15 503-DN20 |
|
Informazioni dettagliate |
|||
| Codice: | 503-DN6 503-DN10 503-DN15 503-DN20 | Materiale: | di ottone |
|---|---|---|---|
| Intervallo di pressione: | 0.3Mpa | Temperatura: | ≤200℃ |
| Pressione delle apparecchiature: | 0.6Mpa | ||
Descrizione di prodotto

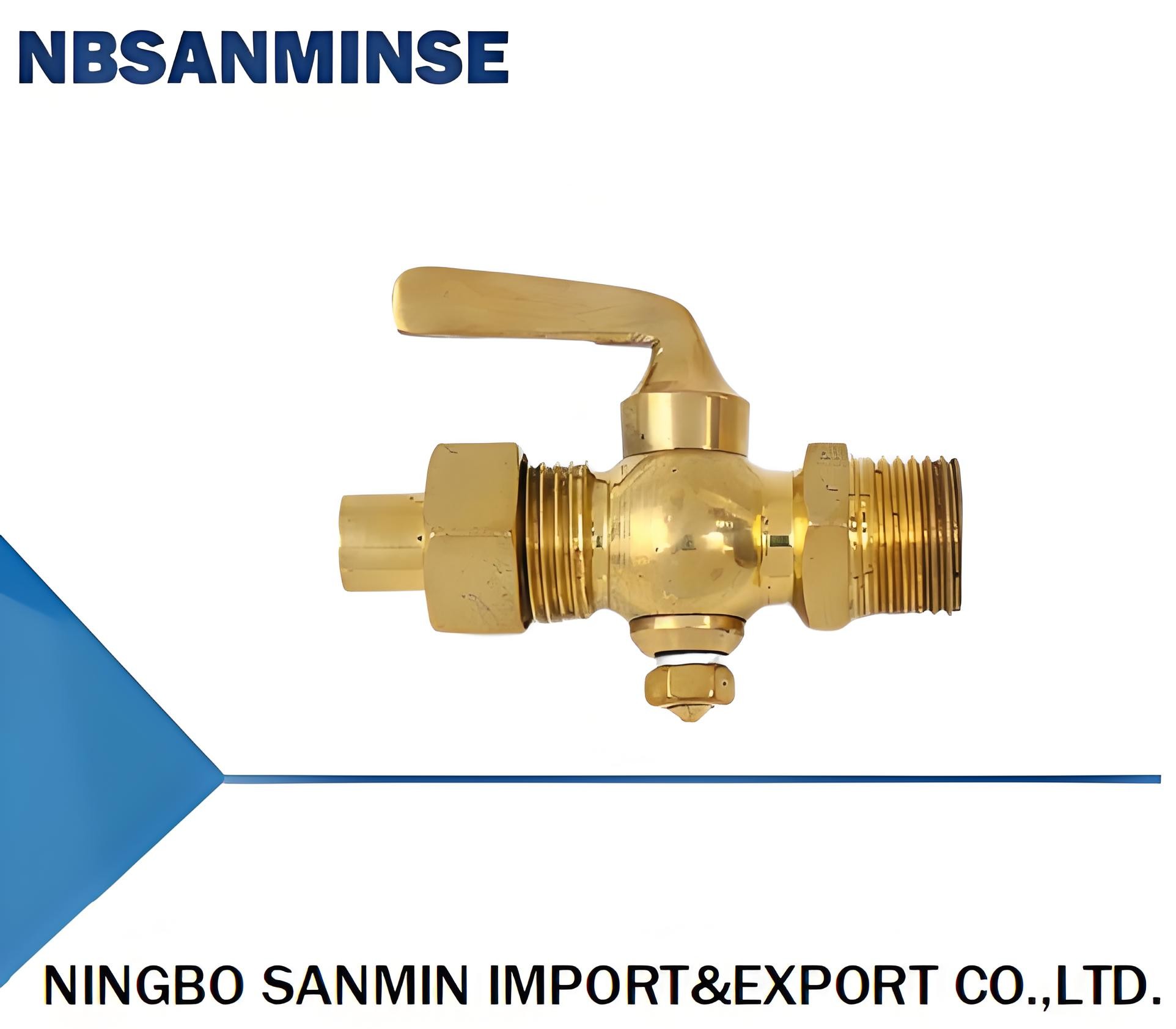

Code: 503 Copper Straight Mouth Plug (with Flexible Joint) Product Model: DN6 DN10 DN15 DN20 Main Material: Brass Pressure Range: 0.3 (Mpa) Channel Form: Straight through Structural Form: Self sealing Plug Valve Installed on Equipment for Water or Steam Discharge. Can connect pipes to release steam, water, oil and other media from the equipment to a distance. The valve body and sealing surface are made of copper alloy, suitable for temperatures ≤ 200 ℃ and equipment pressure PN0.6MPa.
| Code | Material | Pressure Range | Temperature | Equipment pressure |
| 503-DN6 | brass | 0.3Mpa | ≤200℃ | 0.6Mpa |
| 503-DN10 | ||||
| 503-DN15 | ||||
| 503-DN20 |
