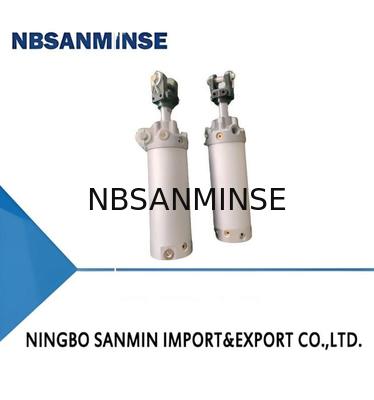

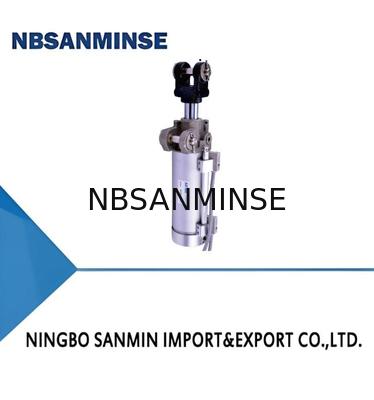

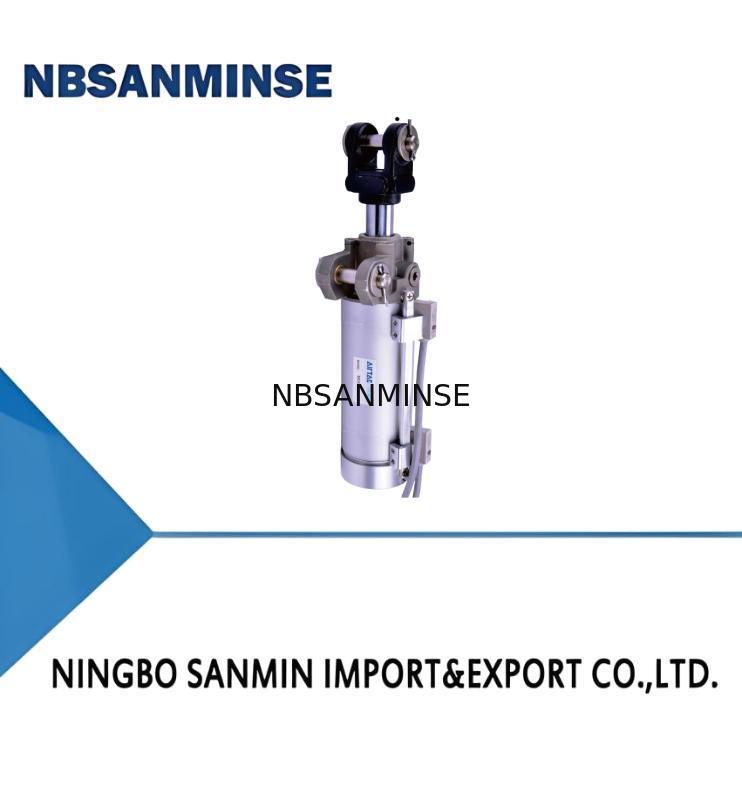

Descrizione di prodotto
Dustproof and welding slag out design:
There is a scraping dust ring in front cover,
and itis firm and durable that can avoid dust and
splashed welding slag breaking cylinders.
It is more reliable than dust helmet.
Yknuckle is available:
Various types of sensor switches are available.
1.The Anti-magnetic sensor should be used with the
anti-magnetic bracket.For details,refer to page P335.
2.Common sensors(DMSG/EMSG,CMSG)should be used with
the sensor holder(F-MCK40G).Please refer to common
sensors for details about DMSG/EMSG and CMSG sensorThe matching sensor
holders need to be ordered separately.The ordering method and installation method are as follows:
Bore
size |
Rod
size |
Acting type |
Operating pressure(MPa) |
| 0.1 |
0.2 |
0.3 |
0.4 |
0.5 |
0.6 |
0.7 |
0.8 |
| 40 |
20 |
Double
acting |
Push side |
125.6 |
251.2 |
376.8 |
502.4 |
628.0 |
753.6 |
879.2 |
1004.8 |
| Pull side |
94.2 |
188.4 |
282.6 |
376.8 |
471.0 |
565.2 |
659.4 |
753.6 |
| 50 |
20 |
Doublej
actingi |
Push side |
196.3 |
392.6 |
588.9 |
785.2 |
981.5 |
1177.8 |
1374.1 |
1570.4 |
| Pull side |
164.9 |
329.8 |
494.7 |
659.6 |
824.5 |
989.4 |
1154.3 |
1319.2 |
| 63 |
20 |
Double
actingil |
Push side |
311.7 |
623.4 |
935.1 |
1246.8 |
1558.5 |
1870.2 |
2181.9 |
2493.6 |
| iPull side |
280.3 |
560.6 |
840.9 |
1121.2 |
1401.5 |
1681.8 |
1962.1 |
2242.4 |
| 80 |
25 |
Double
acting |
Push side |
502.6 |
005.2 |
1507.8 |
2010.4 |
2513.0 |
3015.6 |
3518.2 |
4020.8 |
| Pull side |
453.6 |
907.2 |
1360.8 |
1814.4 |
2268.0 |
2721.6 |
3175.2 |
3628.8 |
Installation and application
1.In normal situation such as:edge packing,installation,jig test..and so on.Standardcylinder is suggested.
2.In case of high-magnetic field generated by welding in the vicinity,anti-magnetic weldingclamp cylinder shall be used and corresponding anti-magnetic sensor switch shall be matched.
3.Before cylinder connecting,the dust must be eliminated to avoid it entering n the cylinder.
4.The medium used by cylinder shallbe filtered to 40μm or below.
5.Under high temperature environment,the cylinder of high-temperature resistance shallbe selected.Anti-freezing measure shall be adopted under low temperature environmentto prevent the water freezing in cylinder.
6.If cylinder is not used for along time,please advert the surface to get rusty.Inlet andoutlet ports should be have anti-dust caps and also spread the oil to avoid getting rusty
Application examples
Specification
| Bore size(mm) |
40 |
50 |
63 |
80 |
| Acting type |
Double acting |
| Fluid |
Air(to be filtered by 40μm filter element) |
| Operating pressure |
0.15~1.0MPa(22~145psi) |
| Proof pressure |
1.5MPa(215psi) |
| Temperature |
-20~70℃ |
| Speed range |
50~500mm/s |
| Cushion type |
Variable cushion for back cover or front cover(optional) |
| Speed controlled valve |
Standard setting for covers |
| Lubrication |
Not required |
| Installatsion type |
Double hinged-supports |
| Port size [Note1] |
1/4" |
3/8" |
Product feature
1.It suits for workshops that make automation welding.
2.There is a scraping dust ring in front cover,and it is firm and durable that can avoid dustand
splashed welding slag breaking cylinders.It is more reliable than dust helmet.
3.It fits the working environment where has strong magnetic field,if it uses
the sensorswitch which is with strong magnet and anti-strong magnetic field.
4.Inlet interface are optional on three sides;buffer adjustment and speed limit adjustmentare built-in.
5.Various types of sensor switches are available.
[Note1]In powerful magnetic field,sensor switch for high-magnet shall be matched.Please refer to Page 335for option.
Inner structure and material of majorparts
| ItemBore size |
40 |
50 |
63 |
| A |
162 |
165 |
167 |
| AC |
59 |
65 |
67 |
| AE |
20 |
22 |
23 |
| C |
76 |
80 |
87 |
| D |
84 |
87 |
89 |
| E |
47 |
57 |
70 |
| M |
52 |
60 |
74 |
N
(Number of hole) |
Variable cushion
for back and front cover |
6 |
6 |
6 |
Variable cushion
for back cover |
2 |
2 |
2 |
| P(Inlet and out let port) |
1/4" |
| PA |
20 |
19 |
19 |
| PB |
9 |
9.5 |
9.5 |
| temType |
DS1-69AM |
| Switch logic |
Transistor without contact,normally opened type |
| Sensor type |
Transistor,two-line,nonpolarity |
| Operating voltage(V) |
10~30V/DC |
| Max.Switching current |
100mA Max. |
| Switching Rating(W) |
3W Max. |
| Anti-magnetic current |
AC17000A |
| Voltage drop |
4.8V Max.@100mA DC |
| Leakage current |
0.6mA Max.@30V DC |
| Min.working current |
3mA Min. |
| Indicator |
Stable range:Green LED;Non-table range:Red LED |
| Cable |
中5.3/0.5SQ×2C×3m/oil resistant,Flame retarded,flection/gravy PVC |
| Sensitivity |
30~40 Gauss |
| Max.Frequency |
8Hz |
| Temperature range |
-10~70℃ |
| Shock |
50m/s² |
| Vibration |
9m/s² |
| Protection |
IP67(EN60529) |
| Protection circuit |
Transistor without contact,surge suppression |
| Fire retardant grade |
UL94-V0 |
