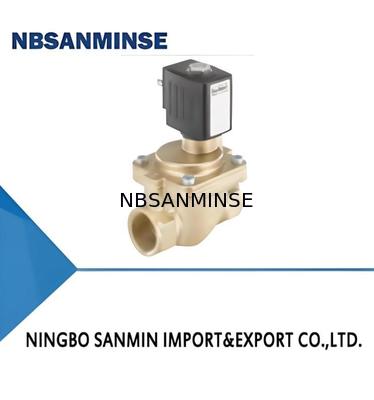

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage
Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage
Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage

Grande immagine :  Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage

Dettagli:
Luogo di origine: Cina
Marca: NBSANMINSE
Certificazione: ISO9001
Numero di modello: 6281
Termini di pagamento e spedizione:
Quantità di ordine minimo: 10pcs
Prezzo: Negoziabile
Imballaggi particolari: Scatola
Tempi di consegna: 5-30 giorni
Termini di pagamento: L/c, t/t
Capacità di alimentazione: 10000pcs
Contatto

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage

descrizione
Orifizio: DN 10 ... DN 50 Tensione operativa: 24 V/DC, 24 V/UC, 24 V/50… 60 Hz, 230 V/UC, 230 V/50… 60 Hz
Temperatura ambiente: Max. +55 ° C. Media: Gas, acqua, aria, olio, vapore
Standard o non standard: Standard Pressione di lavoro: 0,15-0,8 MPA, 0-7KGF/CM3,0,15 ~ 0,8 MPa
Voltaggio: DC12V DC24V AC24V AC110V AC220V AC380V, AC, ± 10%, DC
Evidenziare:

2/2-way Brass Solenoid Valve

,

DN 10... DN 50 Diaphragm Valve

,

24 V/DC Solenoid Valve

• Servo-assisted diaphragm with diameter of up to DN 50
• Vibration-proof, central screwed coil system
• Damped design for quiet closing
• Energy-saving double coil technology with kick and drop variant
• Explosion-proof versions
 Can be combined with Type description
Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 0 Type 2518
Cable plug,
form A according to DIN EN 175301-803
The 6281 valve is a servo-assisted solenoid valve of the S.EV series. A minimum
differential pressure is always required for the function of the valve. Various dia
phragm material combinations and methods of operation are available depending
on the application. The standard brass housing satisfies all European drinking
water requirements. Dezincification-resistant brass is available for other markets.
The housing offering is rounded out by a stainless steel version. To reduce power
consumption in operation, coils with "Kick and Drop" (KD) electronics assembly
(double coil technology) are available. The valve can be equipped with manual
override for easy maintenance and commissioning. NEMA 4X is available on
request.
Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 1 Type 2509
Cable plug,
form A according to DIN EN 175301-803


1.General technical data
Product properties
Dimensions Further infomation can be found in chapter "5.Dimensions"on page 7.
Material
Seal NBREPDM,FKM
Body Brass acc.to DIN EN 50930-6,stainless steel
(dezincification resistant on request)
Inner valve parts Stainless stee,Brass,Plastic(PPS)
Orifice DN 10...DN 50
Circuit function Further infomation can be found in chapter  “2.Circuit functions”on page 4.
Themal insulation class of
solenoid coil		 Polyamide coil class B
Epoxy coil class H
Performance data
Duty cycle 100%continuous operation
Switching  time⁴ Opening:0.1.….1.5 s
Closing:0.2...4s
Electrical data
Operating woltage 24V/DC,24VUC,24V/50...60 Hz,230 VUC,230V/50...60Hz
Power consumption Further infomation can be found in chapter "6.Performance specifications"on page 12.
Voltage tolerance ±10%
Medium data
Operating medium
NBR Neutral fluids (e.g.compressed air,water)
EPDM Oiland fat-free fluids,hot water,aceton,aqueous alkali solution
FKM Hot air,per-solution
Medium temperature
NBR -10.…+80℃
EPDM -30*...90℃(with epoxy coil to+100℃)
FKM 0℃…90℃with epoxy coil to+120℃)
Process/Port connection &communication
Bectrical connection ·Cable plug Type 2518▶,fomA acoording to DIN EN 175301-803
    Further infomation can be found in chapter"“Cable plug Type 2518,form Aaccording to DIN EN
    175301-803"on page 20.
·Cable plug Type 2509▶,fomA acoording to DIN EN 175301-803
    Further infomation can be found in chapter"“Cable plug Type 2509,form Aaccording to DIN EN
    175301-803"on page 20.
Approvals and conformities
Directives                      CE,EAC
Degree of protection IP65 with cable plug,cable connection and terminal box
Explosionprotection Further infomation can be found in chapter"3.4.Explosion protection"on page 4.
North America(USA/Canada) Further infomation can be found in chapter"3.5.North America (USA/Canada)"on page 5.
Drinking water Further infomation can be found in chapter "3.6.Drinking water"on page 5.
Environment and installation
Installation As required,preferably with actuator upright
Ambient temperature Max.+55℃
1.) Measurement at +20 °C, 6 bar at the valve outlet, opening: pressure build-up 0…90%, closing: pressure reduction 100…10%

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 2

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 3

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 4

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 5

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 6

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 7

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 8

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 9

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 10

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 11

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 12

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 13

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 14

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 15

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 16

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 17

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 18

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 19

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 20

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 21

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 22

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 23

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 24

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 25

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 26

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 27

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 28

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage 29
